Neural networks: Introduction to generative adversarial networks

Emmanuel Ohiri

Emmanuel Ohiri

Generative Adversarial Networks (GANs) represent a revolutionary approach to generative modeling. They are a powerful class of artificial neural networks that have garnered significant attention due to their ability to generate remarkably realistic and novel data.

Introduced by Ian Goodfellow and his colleagues in 2014, GANs have opened up new possibilities in fields as diverse as art, medicine, gaming, and beyond by enabling the creation of highly convincing and original content.

In this article, we will discuss Generative Adversarial Networks, what they are, their core components, and their applications, explaining what makes them so powerful and how they work.

What are generative adversarial networks?

Generative Adversarial Networks (GANs) are a class of machine learning models that belong to the broader category of generative models. The primary purpose of GANs is to generate new data that resembles a given set of training data, such as creating images, synthesizing audio, or even producing text that mimics human language.

The concept of GANs was first introduced in 2014 by Ian Goodfellow and his team in a groundbreaking paper titled Generative Adversarial Nets. Goodfellow’s idea was inspired by game theory and the notion of having two networks compete to achieve a common goal.

Since then, GANs have been extensively researched and improved, evolving into various types and architectures, each addressing specific challenges or optimizing specific tasks. Some notable advancements include the creation of Conditional GANs (CGANs) for more controlled image generation, CycleGANs for image-to-image translation, and StyleGANs, which significantly improved the quality and realism of generated images.

CUDO Compute offers the most in-demand NVIDIA GPUs for your AI projects at affordable rates on demand and reserve. You can easily spin up a virtual machine with the NVIDIA H100. Get started now!

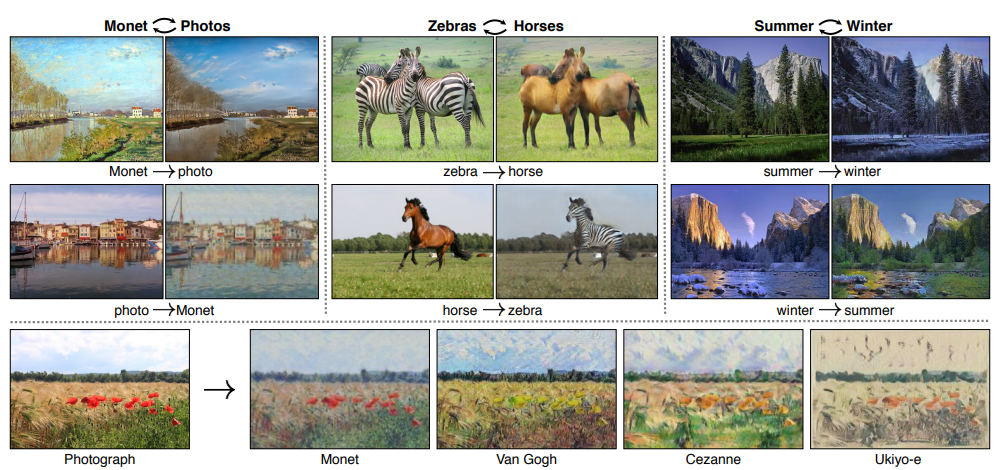

gans image 1 Source: Paper

These innovations address key challenges like training instability, mode collapse, and the need for higher resolution and more diverse outputs. For example, Wasserstein GANs (WGANs) introduced a new loss function to stabilize training, which was a significant improvement over traditional GANs.

These enhancements have made GANs particularly successful in applications like image synthesis, video generation, and even text generation, outperforming traditional generative models like Variational Autoencoders (VAEs) in producing high-quality, realistic outputs​.

GANs are composed of two neural networks, a generator, and a discriminator, that are pitted against each other in a process of continuous learning and improvement. Before we discuss how they work, let’s look at their architecture.

Architecture of generative adversarial networks

The components of a Generative Adversarial Network — the generator and the discriminator — are made up of specific neural network architectures, often involving various layers and special units depending on the task. Here's a detailed breakdown of each component's makeup:

1. Generator

The generator is a neural network designed to transform random noise into synthetic data resembling real data. Its architecture and layers can vary based on the type of data it generates.

Layers:

1. Input layer:

The generator in a GAN starts with an input layer that accepts a random noise vector, which is the initial input to the generator network. The noise vector is a set of random numbers, often represented as a one-dimensional array (e.g., size 100).

These numbers can be sampled from different probability distributions like Gaussian and uniform distributions. Gaussian Distribution (Normal Distribution) is a bell-shaped distribution where most values cluster around the mean, and fewer values appear as you move away from the center. This is often used because it reflects many natural phenomena.

Uniform distribution is a distribution where all values within a specified range are equally likely, ensuring that no single value is favored over another.

The randomness in the noise vector provides the diversity needed for the generator to create a wide variety of outputs rather than a single fixed result. The idea is that, from this random seed, the generator can learn to transform these numbers into complex data structures (like images, text, etc.) that resemble real data seen during training.

gans image 2 Source: Geekforgeeks

2. Fully connected layers:

As discussed previously, fully connected layers, also known as dense layers, are a type of neural network layer where every neuron is connected to every neuron in the previous and next layer. They play an important role in various neural network tasks, including classification, regression, and data generation in the case of GANs.

You can read more about fully connected layers here: What is a Neural Network?

In GANs, the first fully connected layers take the low-dimensional noise vector from the input layer and then expand it into a higher-dimensional representation. For example, a vector of size 100 can be expanded into a higher dimension, like 4,096 values, or reshaped into a larger structure, increasing the complexity of the data and making it suitable for further transformations.

Fully connected layers are used in the early stages of the generator because they set the foundation for creating realistic outputs. Without this initial expansion, the generator would struggle to add the necessary detail and structure to the random noise.

This expansion process ensures the generator has a sufficiently rich and complex starting point, allowing it to learn how to create realistic, high-quality outputs as it moves through the rest of the network.

3. Convolutional layers:

For image generation tasks, convolutional layers are vital. The specific types used in GANs, such as Conv2DTranspose (transposed convolution or "deconvolution") or upsampling layers, help progressively increase the spatial dimensions of the data. This process transforms low-dimensional noise into higher-dimensional images. These layers are particularly common in architectures like Deep Convolutional GANs (DCGANs), where they play a crucial role in creating realistic textures and patterns in images

  • Batch normalization layers:

Batch normalization helps stabilize and speed up the training process by normalizing the output of each layer. Normalization reduces the sensitivity to initial conditions and improves the gradient flow through the network, which is especially important in GANs to avoid issues like mode collapse.

  • Activation functions:

Common activation functions include ReLU (Rectified Linear Unit) for hidden layers and Tanh for the output layer, which helps in scaling pixel values for image generation.

This setup allows the generator to convert simple random noise into complex, structured outputs that closely mimic real-world data.

2. Discriminator

The discriminator is another neural network that classifies inputs as real or fake. Its architecture mirrors many aspects of the generator but focuses on classification.

Layers:

1. Input layer:

The discriminator's input layer receives data that is either real (from the actual dataset) or fake (generated by the generator). The data could be in various forms, such as images, text, or other structured data types.

2. Convolutional layers:

Convolutional layers are crucial in processing image data within the discriminator. They extract spatial features by applying filters that detect patterns like edges, textures, and other important details that differentiate real data from generated data.

Unlike the upsampling process in the generator, the discriminator uses standard convolutional layers (Conv2D) to downsample the input data, reducing its dimensions while capturing essential features that help in classification.

These layers play a significant role in capturing local dependencies and hierarchies of features, crucial for distinguishing real images from generated ones.

The convolutional layers used in the discriminator of a GAN are very similar to those found in Convolutional Neural Networks (CNNs). To read more on the convolutional layers and CNNs, check out our introduction to Convolutional Neural Networks.

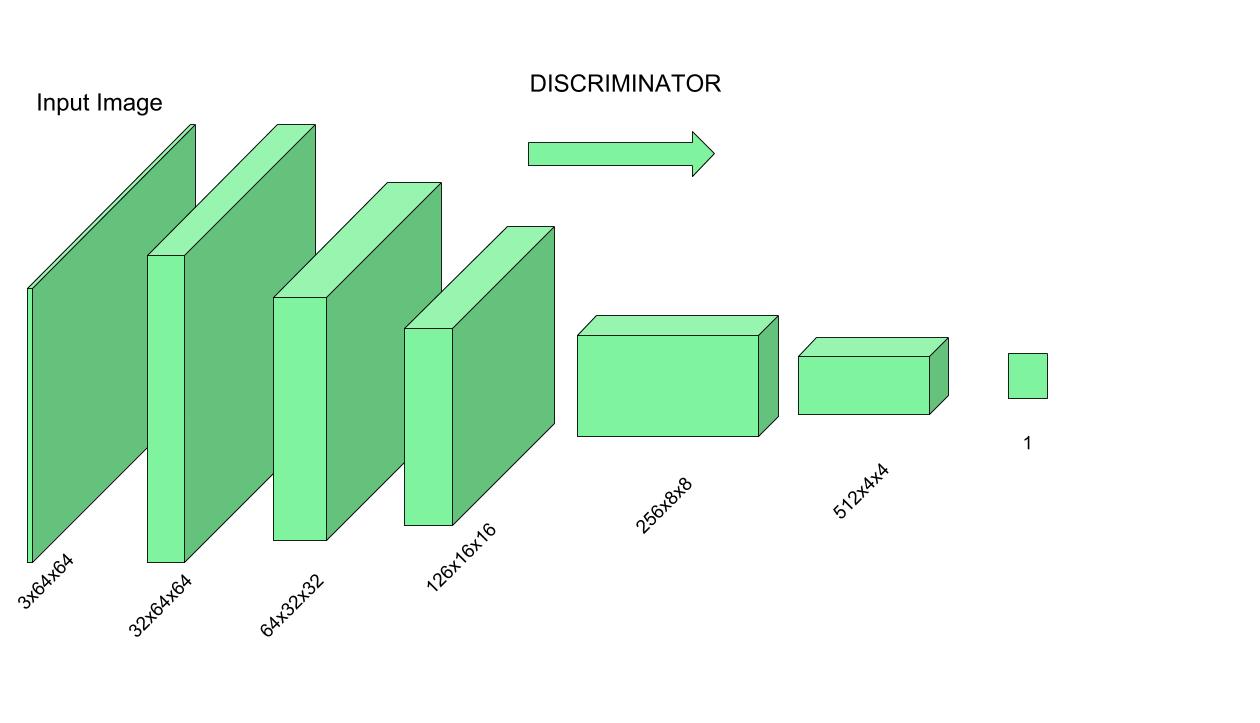

gans image 3 Source: Geekforgeeks

3. Fully connected layers:

After the convolutional layers, the data is flattened into a one-dimensional vector, passing through fully connected (dense) layers. These layers integrate the extracted features from the convolutional layers, enabling the network to learn complex combinations of features that are indicative of real versus fake data.

4. Leaky ReLU activation:

Leaky ReLU is commonly used in discriminators instead of standard ReLU to mitigate the problem of "dead neurons," which occur when units stop learning due to zero gradients. It allows a small, non-zero gradient when the unit is inactive, maintaining gradient flow and enabling the network to learn more robustly from a wider range of inputs.

5. Dropout layers:

Dropout layers are sometimes used to prevent overfitting, a common problem in neural networks where the model learns to memorize training data rather than generalize from it.

During training, dropout layers randomly deactivate a fraction of neurons in each layer, forcing the network to learn more generalized patterns rather than relying on specific pathways.

6. Sigmoid Output Layer:

The final layer in the discriminator is often a sigmoid activation function, producing a probability score between 0 and 1. The score represents the likelihood that the input data is real (closer to 1) or fake (closer to 0). Its binary classification output is important for training the discriminator to discern between genuine and generated samples effectively

Additional architectural choices:

  • Residual Connections: In some advanced GAN architectures like ResNet-based GANs, residual connections are used to help gradient flow and improve the model’s ability to learn complex functions.
  • Attention Mechanisms: In more recent GAN variants, attention mechanisms have been incorporated to focus on specific regions of an image, enhancing detail and feature learning.

Overall, the components of a GAN are primarily made up of standard neural network layers, with specific configurations and layer choices designed to optimize the adversarial training process and enhance the quality of the generated data.

How generative adversarial networks training works

1. Training the Discriminator:

  • Objective: The discriminator is trained using both real data from the dataset and fake data produced by the generator. Its goal is to classify the real data as real accurately and the generated data as fake.
  • Process: The discriminator's weights are updated through backpropagation to maximize classification accuracy. It learns by minimizing the loss function, often binary cross-entropy, which quantifies how well it distinguishes real from fake inputs.
  • Outcome: A well-trained discriminator can provide accurate feedback to the generator about which aspects of the generated data make it identifiable as fake, thereby guiding improvements.

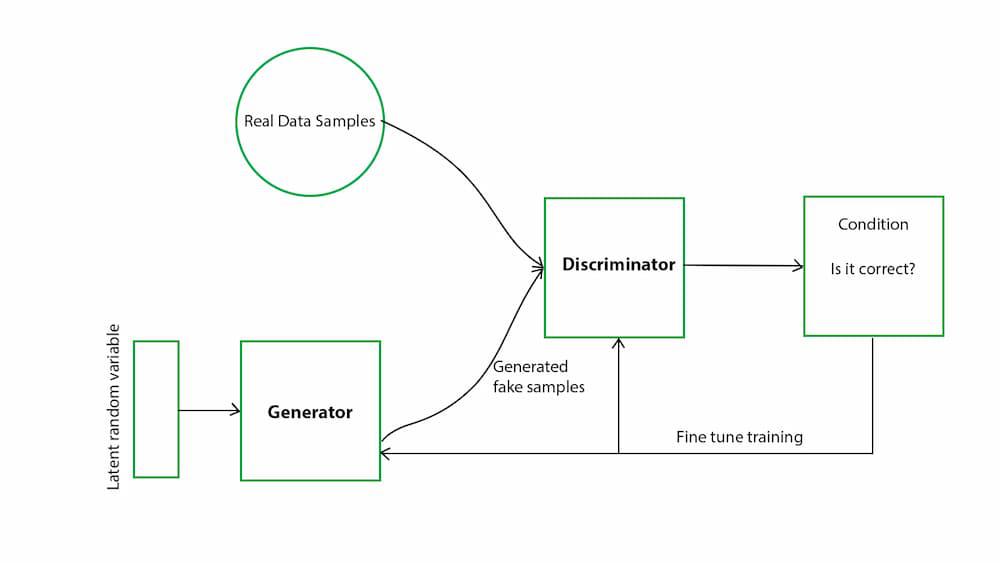

gans image 4 Source: Geeks for geeks

2. Training the generator:

  • Objective: The generator aims to produce data that can deceive the discriminator into classifying it as real. The generator does not directly see the real data but relies on feedback from the discriminator to improve.
  • Process: The generator is updated to minimize the discriminator’s ability to detect its outputs as fake. This is achieved through the loss function that effectively "inverts" the discriminator’s feedback, updating the generator to produce more realistic outputs.
  • Outcome: As training progresses, the generator improves its ability to create outputs indistinguishable from real data, effectively learning the distribution of the real data without explicit access to it.

3. Adversarial training:

The overall training process of a GAN is a zero-sum game, meaning the success of one component (the generator) comes at the expense of the other (the discriminator). The generator seeks to minimize the discriminator’s accuracy while the discriminator tries to maximize it.

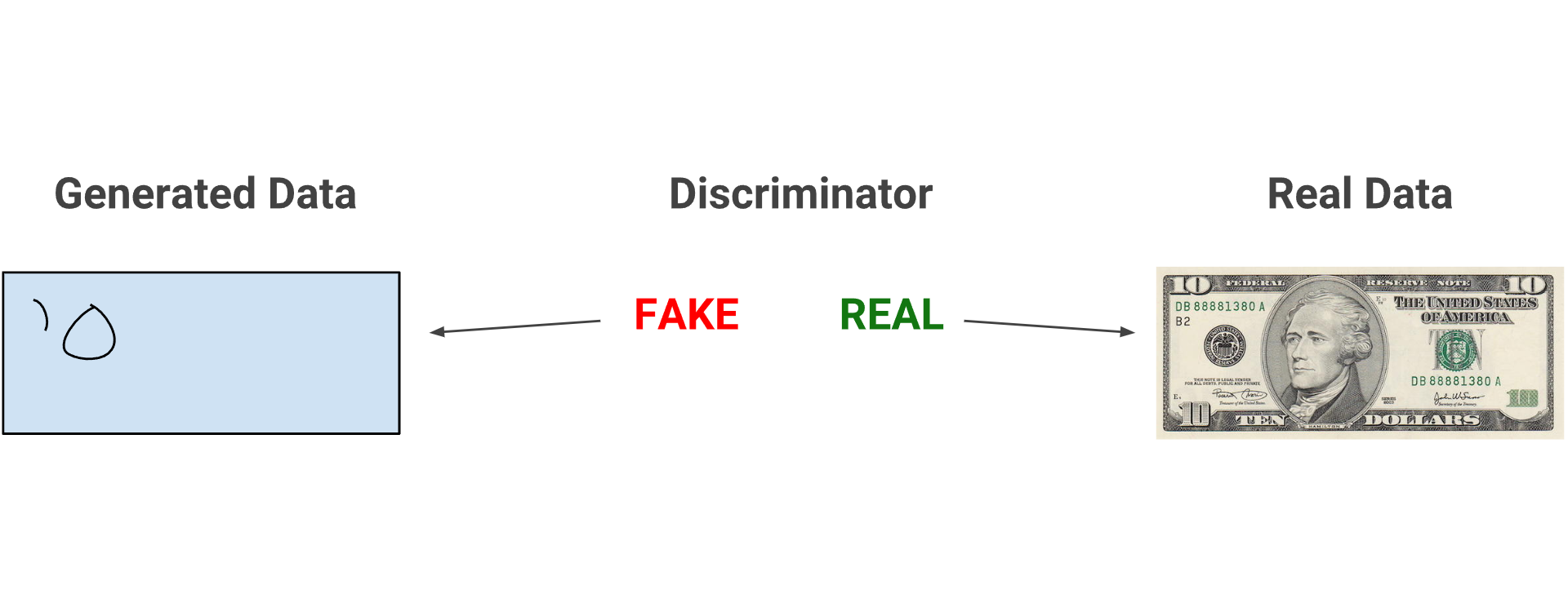

gans image 5 Source: Google Developers

The ideal scenario in GAN training is reaching a Nash equilibrium, where the discriminator can no longer reliably tell the difference between real and synthetic data, and the generator produces high-quality outputs that are highly convincing.

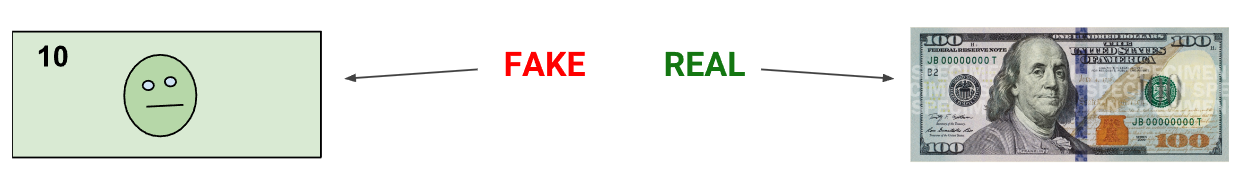

gans image 6 Source: Google Developers

This iterative process continues, often requiring careful tuning of learning rates, loss functions, and architectural choices to maintain balance and avoid common pitfalls like mode collapse (where the generator produces limited types of outputs) or unstable training.

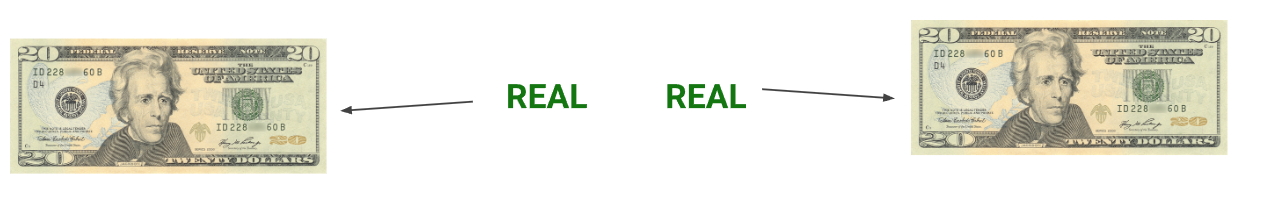

gans image 7 Source: Google Developers

Applications of GANs

GANs have a wide range of applications, many of which are already having a significant impact on various industries. Below are some of the most notable uses of GANs:

Image Generation and Manipulation

GANs have revolutionized the field of computer vision, particularly in image generation and manipulation. Some key applications include:

  • Deepfakes: GANs are the backbone of deepfake technology, where realistic human images and videos are generated by learning from real visual data. This has applications in entertainment, creating digital characters, and even altering scenes in movies.
  • Style transfer: GANs can be used to modify the style of images while preserving their content, allowing for artistic transformations that mimic famous artists' styles.
  • Image inpainting: GANs can be used to fill in missing parts of an image, which is useful in photo restoration and editing.

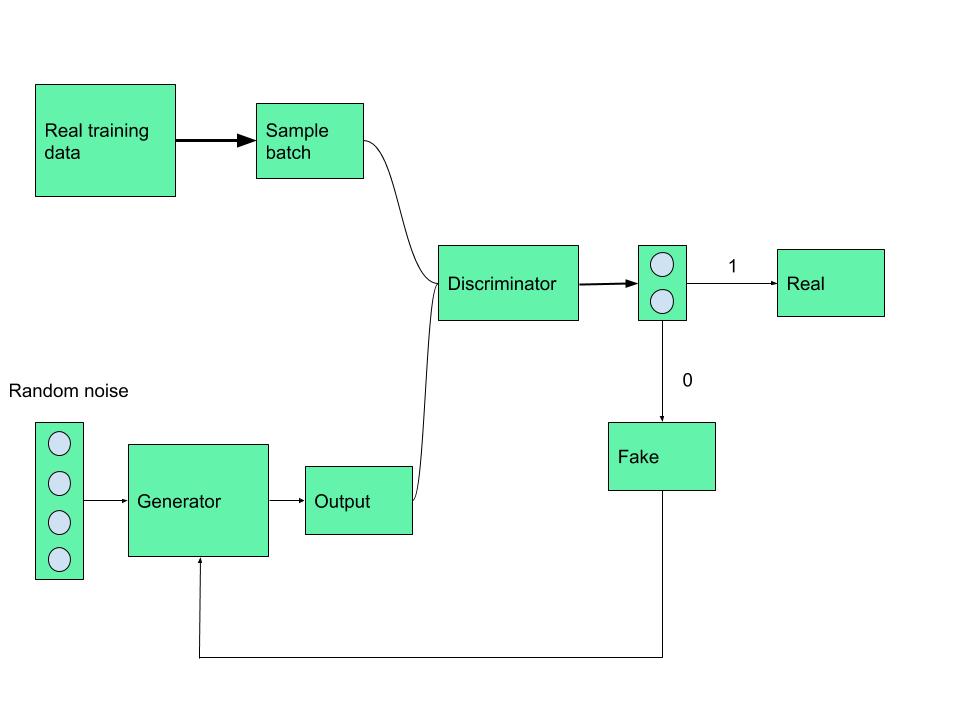

gans image 8 Source: Geek for geeks

Text-to-image synthesis

Another groundbreaking application of GANs is text-to-image synthesis, where the model generates images based on textual descriptions. For example, given the text input "a two-story pink house with a white fence," the GAN can generate a realistic image that matches this description. This application is valuable in fields such as design, marketing, and content creation, where visual representations of ideas are needed quickly.

Video generation

GANs have also been extended to video generation, creating short clips that resemble real-world footage. This includes generating synthetic training data for video analysis tasks, creating special effects in movies, or simulating scenarios for research purposes.

Data augmentation in medical imaging

In the medical field, GANs are used for data augmentation, a technique that enhances the training of machine learning models by generating additional synthetic examples. For instance, GANs can generate medical images like MRIs or X-rays to improve diagnostic models, especially when real data is scarce or difficult to obtain.

Applications in gaming and entertainment

In gaming, GANs are used to generate realistic environments, characters, and textures, enhancing the overall gaming experience. They also enable the creation of procedural content, allowing games to have more dynamic and varied elements without manual design.

Conclusion

Generative Adversarial Networks have improved generative modeling, offering unprecedented capabilities in creating realistic synthetic data. As GANs continue to advance, they are poised to play an increasingly pivotal role in shaping the digital landscape of the future.
